Product Overview

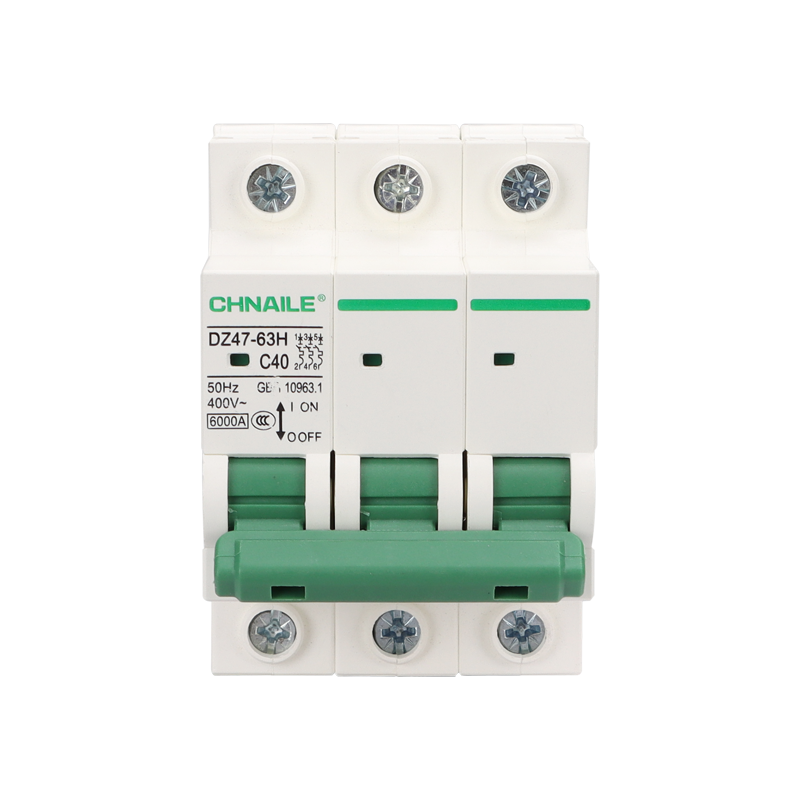

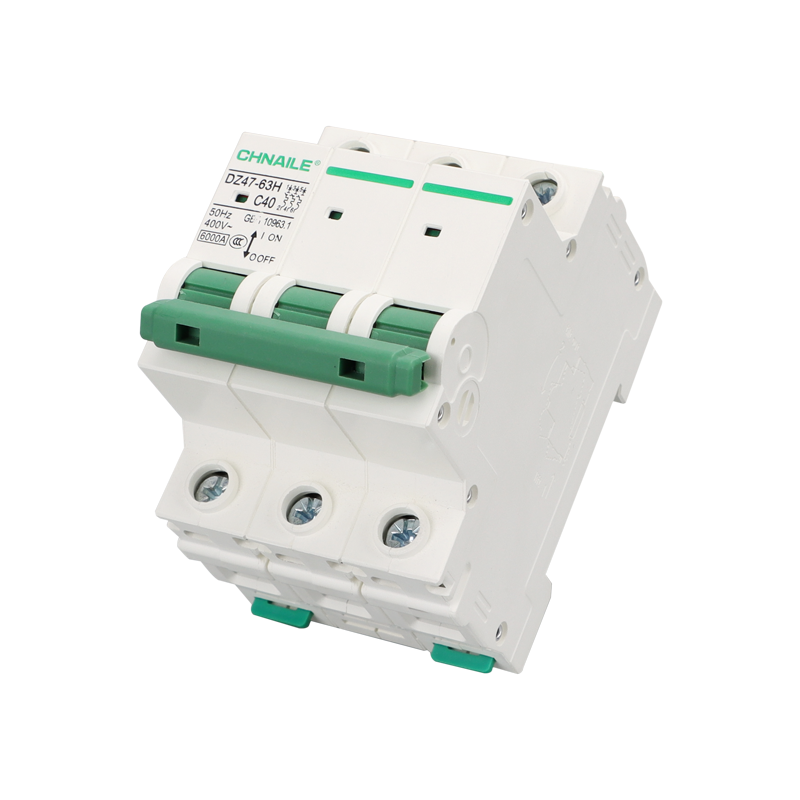

In coastal solar installations and tropical industrial parks, the air itself is an electrical hazard. Condensation, salt-fog, and sweltering 50°C+ temperatures lead to severe dielectric breakdown and mechanical seizing in conventional circuit breakers. The CHNAILE Damp-Heat Resistant 3-Pole Miniature Circuit Breaker (MCB) proactively neutralizes these environmental threats. Strictly compliant with IEC 60898-1 and achieving an elite Class 2 Damp-Heat classification, this 40-Ampere device provides unyielding 3-phase power routing. Fortified with an astonishing 20,000-cycle mechanical lifespan and a 6kA arc-quenching core, it ensures your multi-million-dollar coastal and equatorial infrastructure remains protected, online, and maintenance-free.
Technical Parameters
| Device Category: | AC Miniature Circuit Breaker (Heavy-Duty MCB) |
| Poles Configuration: | 3P (Simultaneous 3-Phase AC Disconnect) |
| Rated Current (In): | 40A (Engineered for ~27kW heavy 3-phase loads) |
| Rated Operating Voltage (Ue): | AC 400V |
| Rated Insulation Voltage (Ui): | 690V (Exceptional dielectric strength in moist air) |
| Short-Circuit Breaking Capacity (Icu): | 6000A (6kA) |
| Climatic Tolerance: | Class 2 Damp-Heat Resistant (Stable at 55°C, 95% Relative Humidity) |
| Mechanical Endurance: | > 20,000 Operations (Extreme mechanical longevity) |
| Terminal Wiring Capacity: | Accommodates heavy-gauge 25mm² copper cables |
| Visual Identifier: | Industrial Green Toggles (Denoting Safe Main Isolation) |
| Standard Compliance: | GB10963.1 / IEC 60898-1 |
1. Elite Environmental & Kinetic Resilience
Class 2 Damp-Heat Armor: Humidity breeds internal micro-arcing and rust. The bimetallic thermal sensors and magnetic tripping coils within this breaker undergo advanced anti-corrosive treatments. This prevents the mechanical linkages from seizing and preserves the dielectric integrity of the casing, even when the ambient environment permanently hovers at 55°C and 95% RH.
20,000-Cycle Indestructibility: Commercial HVAC units and large-scale pumps cycle frequently. The internal kinetic mechanisms are radically over-engineered to guarantee a staggering 20,000 mechanical operations and 6,000 full-load electrical operations. This unparalleled longevity drastically reduces OPEX (Operational Expenditure) for facilities located in hard-to-reach tropical zones.

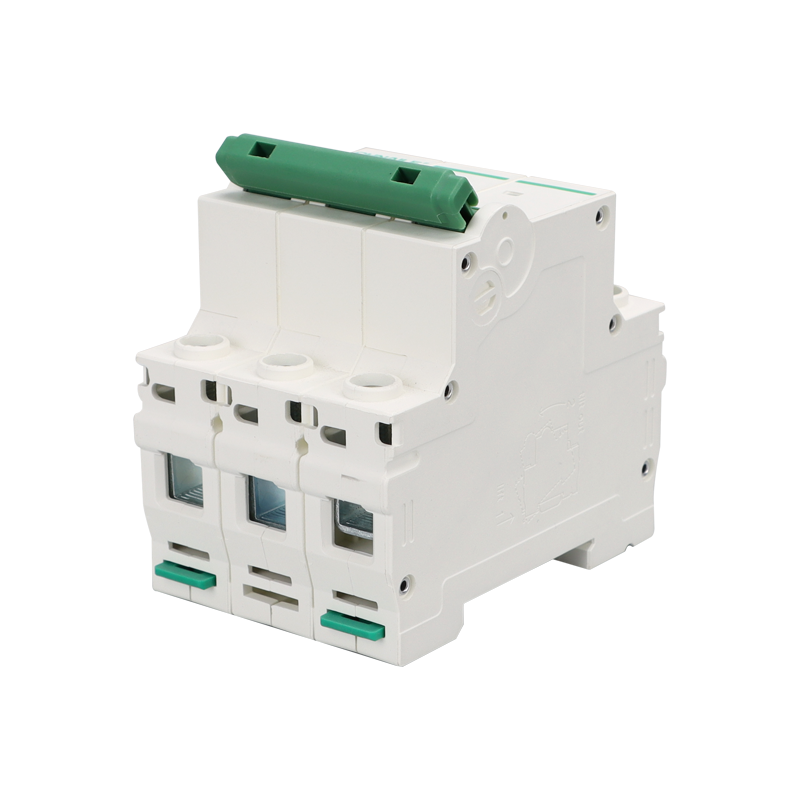

Massive 25mm² Cable Anchorage: Transmitting 40 Amps per phase in hot climates exacerbates wire heating. The deep-set, high-torque screw terminals are specifically widened to accept massive 25mm² heavy-gauge copper cables. This ensures a zero-gap, low-resistance connection that prevents thermal creep and terminal fires.
2. High-Capacity 3-Phase Precision Defense
40A C-Curve Thermal Calibration: A 40A 3-phase load represents significant commercial power (approx. 27kW). The Curve C thermal release is precisely tuned to tolerate the moderate inrush currents of central air-conditioning compressors and industrial water pumps, preventing frustrating nuisance tripping during peak summer start-ups.
6kA Instantaneous Plasma Extinction: Should a dead short occur due to saltwater ingress in an outdoor junction box, the responsive electromagnetic coil violently severs the 3-phase connection, driving the 6000A plasma into high-density arc chutes to extinguish the threat in milliseconds.
Green 'Safe Isolation' Visual Coding: In massive coastal distribution boards, human error during emergency maintenance can be lethal. The distinctive triple green toggles serve as an international visual standard for "Safe Main Isolation," allowing engineers to instantly identify and kill the primary AC feed.
3. Target Application Scenarios
Because of its extreme Class 2 damp-heat rating, massive 20,000-cycle lifespan, and 40A 3-phase footprint, this MCB is exclusively mandated by global EPCs for:
Coastal & Offshore Solar AC Combiners: Serving as the resilient main AC branch protection for commercial string inverters operating in highly humid, salt-fog environments.
Tropical Commercial HVAC Systems: Providing unyielding, corrosion-resistant electrical distribution for massive rooftop chillers and condenser units in equatorial mega-cities.
Maritime Port Auxiliaries: Acting as the moisture-proof power gateway for heavy-duty 3-phase dockside cranes, lighting arrays, and refrigerated container (Reefer) terminals.
Industrial Agricultural Pumping: Securing critical water filtration and high-pressure irrigation circuits in sweltering, damp agricultural processing plants.
4. Global B2B Partnership with CHNAILE Factory
Factory-Direct Climate-Proof Switchgear: Bypass intermediary trading networks. Sourcing specialized damp-heat resistant MCBs directly from our manufacturing floor dramatically optimizes the BOM for your international coastal and equatorial infrastructure projects.
Exhaustive Environmental Chamber Testing: We do not gamble with extreme climates. Every batch undergoes grueling weeks inside automated environmental chambers, cycling between extreme heat and 95% humidity, alongside 6kA short-circuit blasts prior to passing final IEC export certification.
Premium OEM Panel Builder Support: We actively partner with global marine and HVAC system integrators, offering bespoke laser-engraved faceplates, specific toggle color-coding, and customized packaging tailored to your proprietary weather-proof distribution boards.
